HOME >> Industrial gas burner >> A SHE Efficient Self Preheating Burner Energy-saving Industrial burners
  • A SHE Efficient Self Preheating Burner Energy-saving Industrial burners

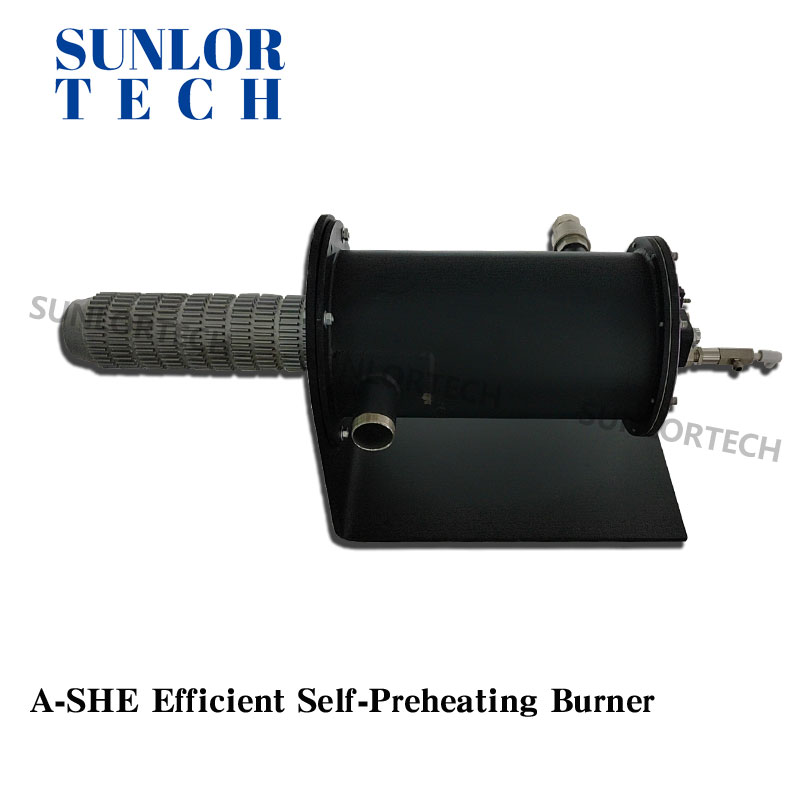

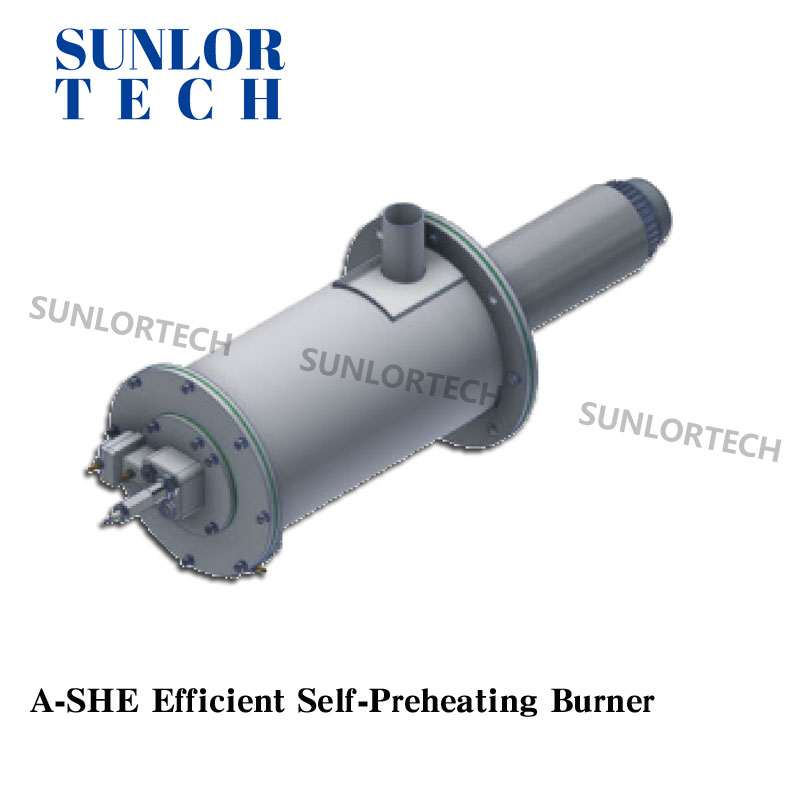

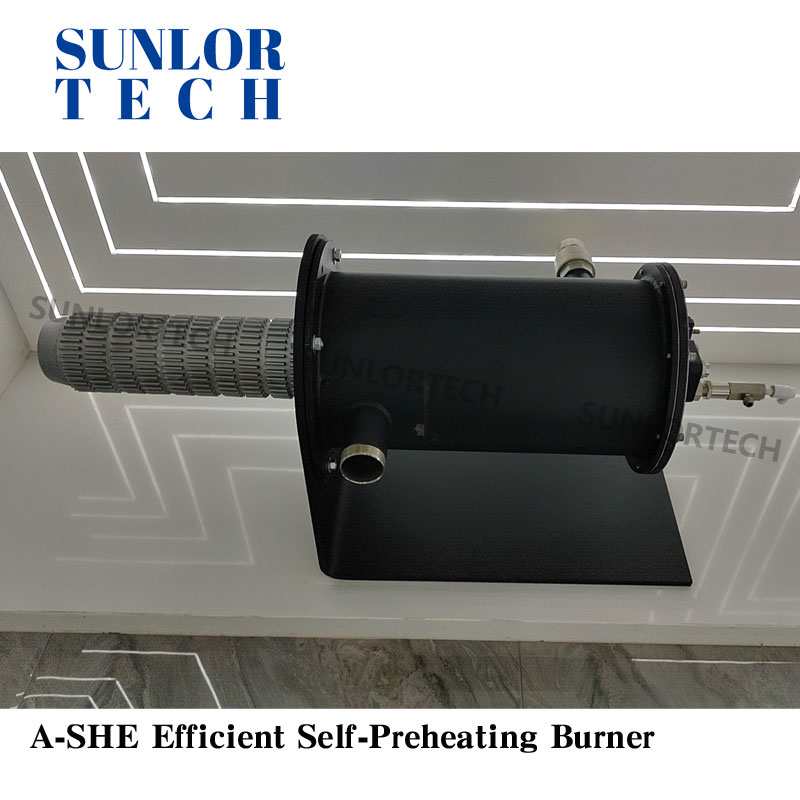

    A SHE Efficient Self Preheating Burner Energy-saving Industrial burners
    A SHE Efficient Self Preheating Burner Energy-saving Industrial burners
    A SHE Efficient Self Preheating Burner Energy-saving Industrial burners
    A SHE Efficient Self Preheating Burner Energy-saving Industrial burners
    ❤ Add to collection

  • A SHE Efficient Self Preheating Burner Energy-saving Industrial burners

    Features

    In order to further enhance the waste heat recovery capacity of flue gas and reduce fuel cost, it adds an auxiliary heat recovery system on the basis of the original finned casing primary heat exchanger, which increases the fuel efficiency to more than 90%, which is close to the level of regenerative heat recovery system. However, it has simpler structure, lower cost, less space and better maintenance performance. Therefore, compared with there generative burner, it has higher performance-to-price ratio.

    Applications

    Roller hearth furnace or heat treatment furnace

    Trolley type heating furnace or heat treatment furnace

    Chamber heating furnace or heat treatment furnace

    Normalizing furnace

    Mesh belt furnace

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Features

In order to further enhance the waste heat recovery capacity of flue gas and reduce fuel cost, it adds an auxiliary heat recovery system on the basis of the original finned casing primary heat exchanger, which increases the fuel efficiency to more than 90%, which is close to the level of regenerative heat recovery system. However, it has simpler structure, lower cost, less space and better maintenance performance. Therefore, compared with there generative burner, it has higher performance-to-price ratio.

Applications

Roller hearth furnace or heat treatment furnace

Trolley type heating furnace or heat treatment furnace

Chamber heating furnace or heat treatment furnace

Normalizing furnace

Mesh belt furnace

Product Description

Air shell:

SUS 304

Material material for air inlet pipe:

Carbon steel

Applied maximum furnace temperature:

11 50C

Fire pipe material:

Silicon carbide

Combustion head:

Cr28Ni48W

Fixed flange:

Q235

Preheat the air:

Normal temperature

Power:

40~400KW

Air inlet pressure:

75mbar

Gas inlet pressure:

60mbar
Fuel:NG /LPG/COG
Adjustment ratio:1:3
