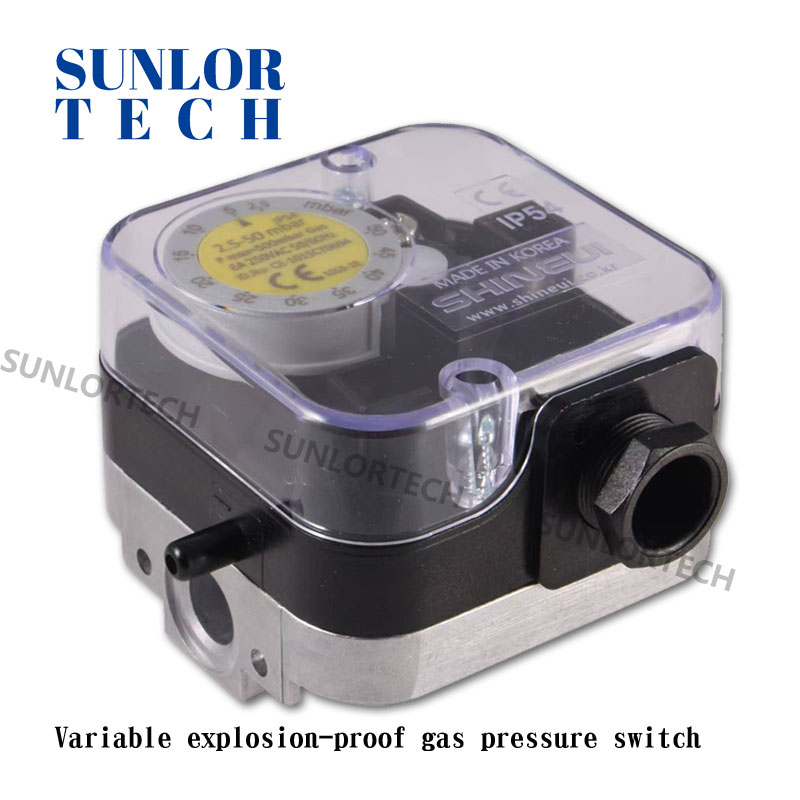

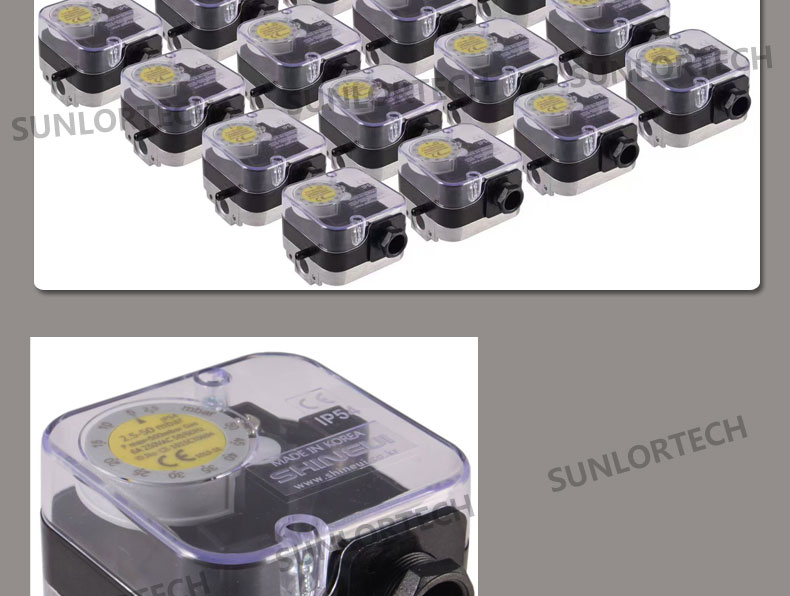

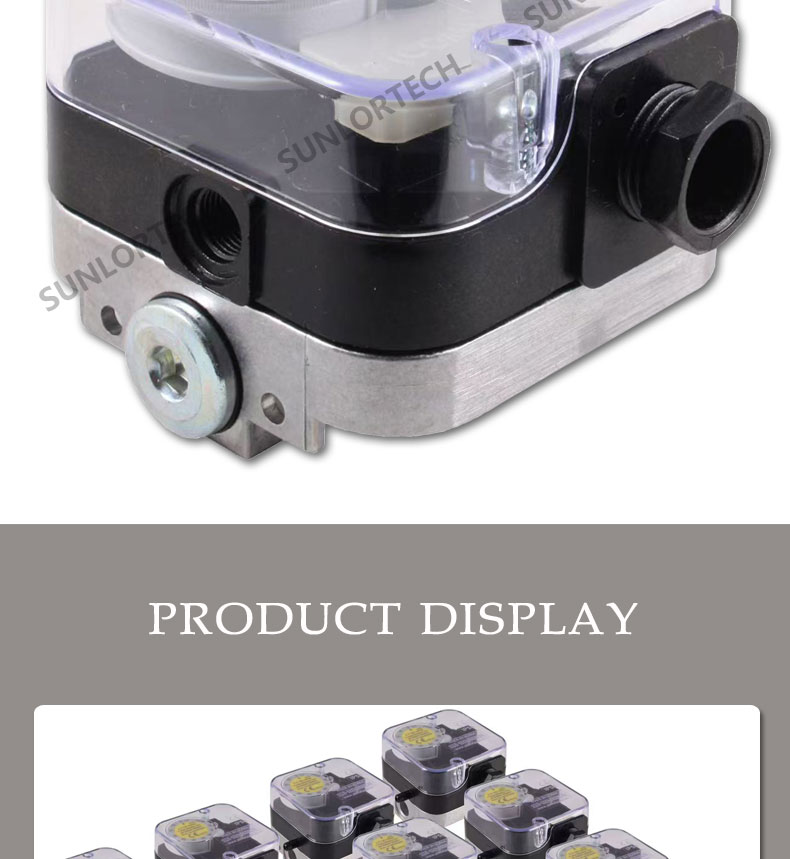

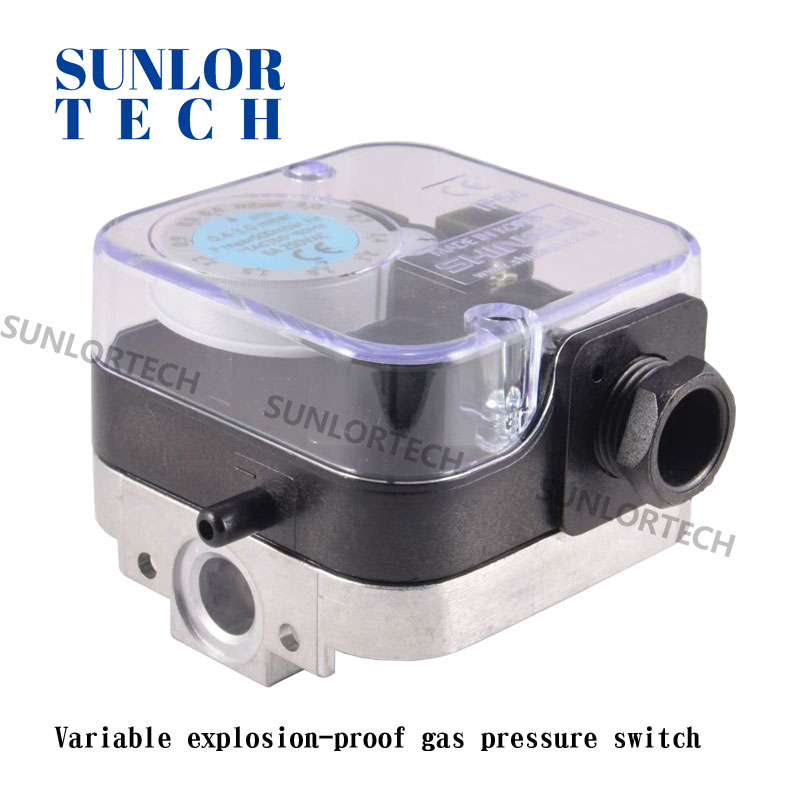

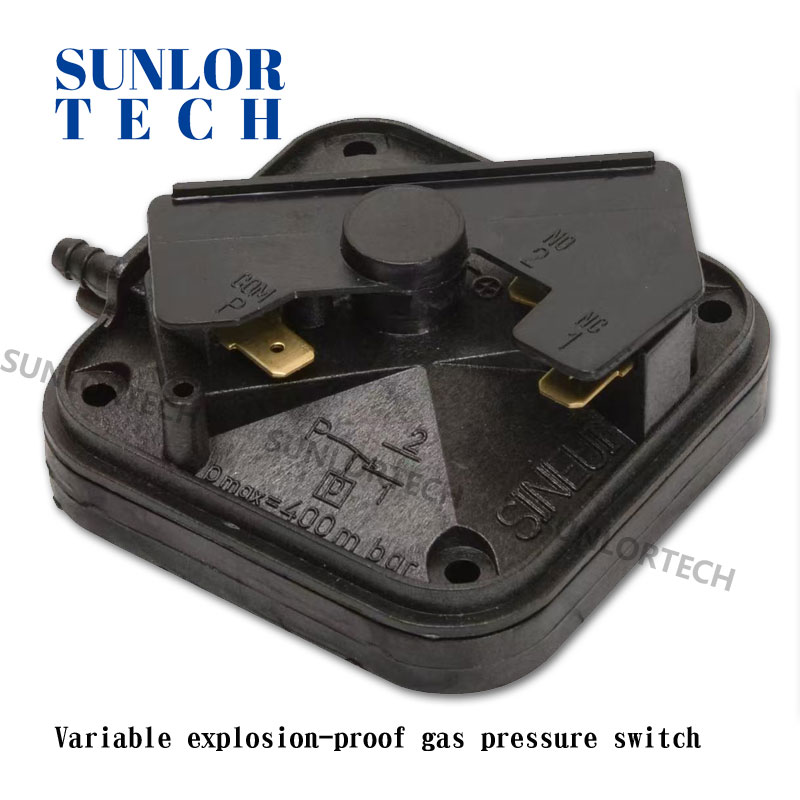

    Variable explosion-proof gas pressure switch
    Variable explosion-proof gas pressure switch
    Variable explosion-proof gas pressure switch
    Variable explosion-proof gas pressure switch
    Variable explosion-proof gas pressure switch
    ❤ Add to collection

  • Variable explosion-proof gas pressure switch

    Features

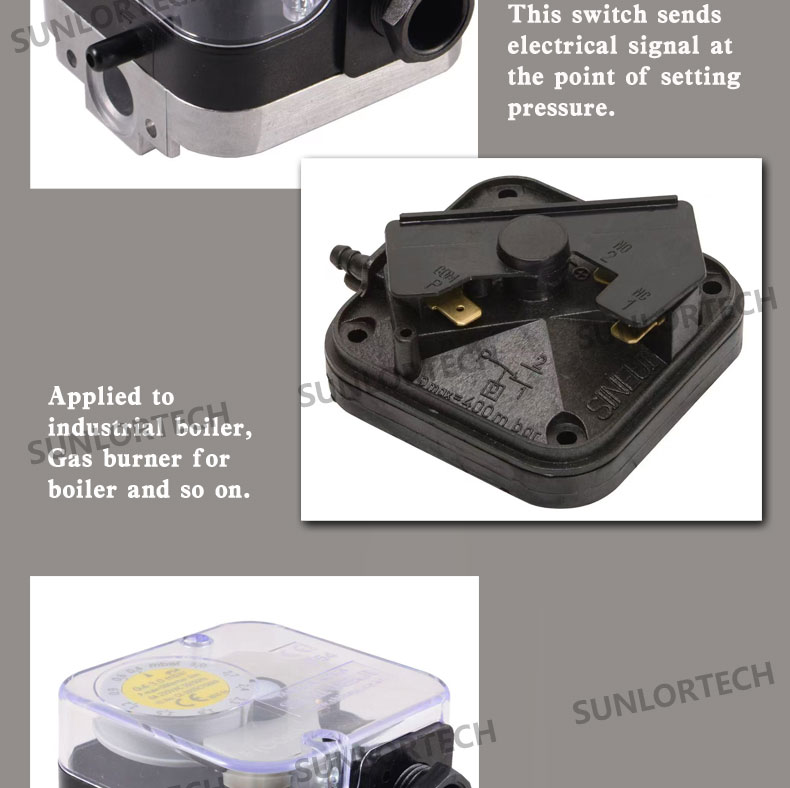

    This switch sends electrical signal at the point of setting pressure

    It's possible for users to adjust the setting point with in the range of pressure marked.

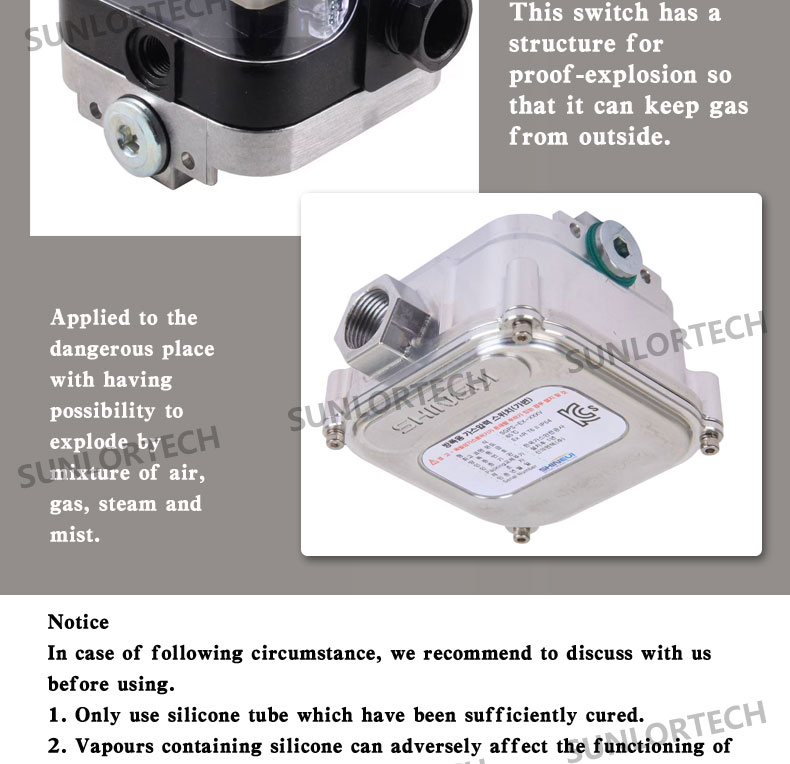

    This switch has a structure for proof-explosion so that it can keep gas from outside.

    Easy installing, Having slim and unique design.

    APPLICATION

    Applied to industrial boiler, Gas burner for boiler and so on.

    Installing in dangerous place with having possibility to explode.

    Applied to the dangerous place with having possibility to explode by mixture of air, gas, steam and mist.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Features

This switch sends electrical signal at the point of setting pressure

It's possible for users to adjust the setting point with in the range of pressure marked.

This switch has a structure for proof-explosion so that it can keep gas from outside.

Easy installing, Having slim and unique design.

APPLICATION

Applied to industrial boiler, Gas burner for boiler and so on.

Installing in dangerous place with having possibility to explode.

Applied to the dangerous place with having possibility to explode by mixture of air, gas, steam and mist.

PRODUCT DESCRIPTION
TYPEDiaphragm type /Adjustable type
MaterialBASEALDC12
COVERALDC12
UPPERPOLYCARBONATE
Diaghragm and PACKINGNBR
TerminalBrass
ETCAL5052.AL2021.SUS
Ambient temperature-15℃
Electrical ratingMin AC24V~Max AC250V,6A(Resistive Load)
Control fluidLNG, LPG, AIR
SPECIFICATIONS
ModelSGPS-EX-3VSGPS-EX-10VSGPS-EX-50VSGPS-EX-150VSGPS-EX-500V
Pmax.Sustained pressure100 mbar500 mbar900 mbar
Stand pressure settingrangeFactory set point0.4-~3.0 mbar1.0~10 mbar2.5~50 mbar30~150 mbar100~mbar
Switching Difference≤0.3 mbar≤0.5 mbar≤1.5 mbar≤5 mbar≤13 mbar
Adjustable tolerance

±15%

Differential

±15%

Degree of protectionIP65
Electrical connectionAt the terminal screw directly, or you have to connect an adapter if you want to use the standard cable grand(M20X1.5).
Pressure connectionPT 1/4"
