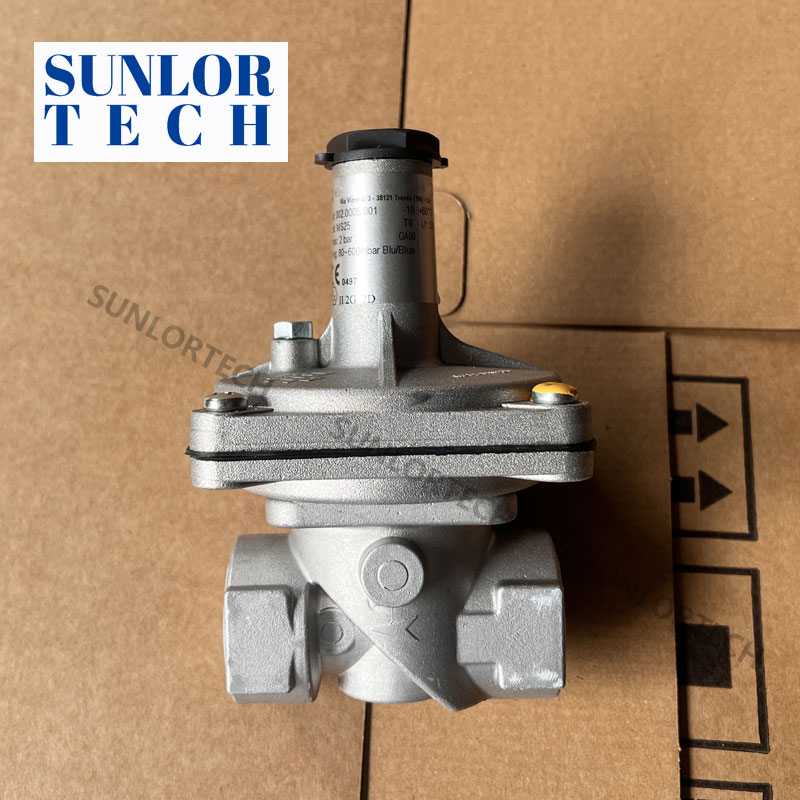

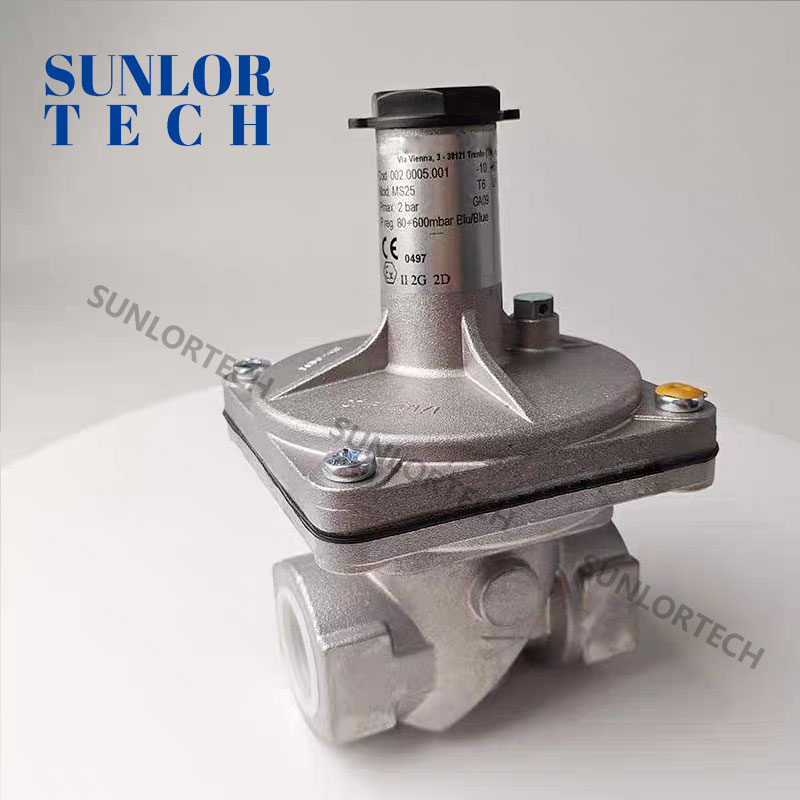

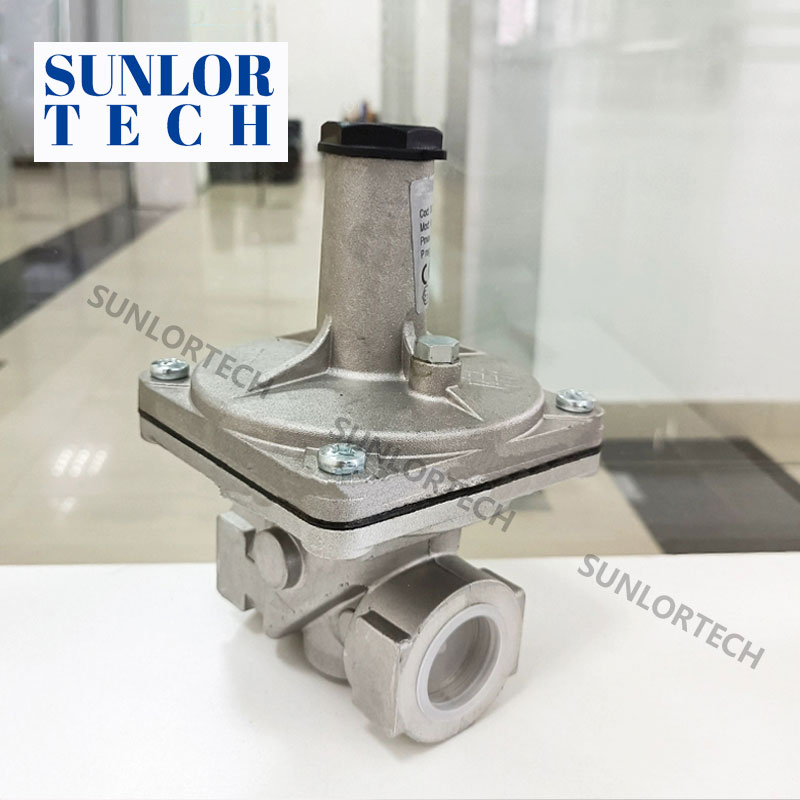

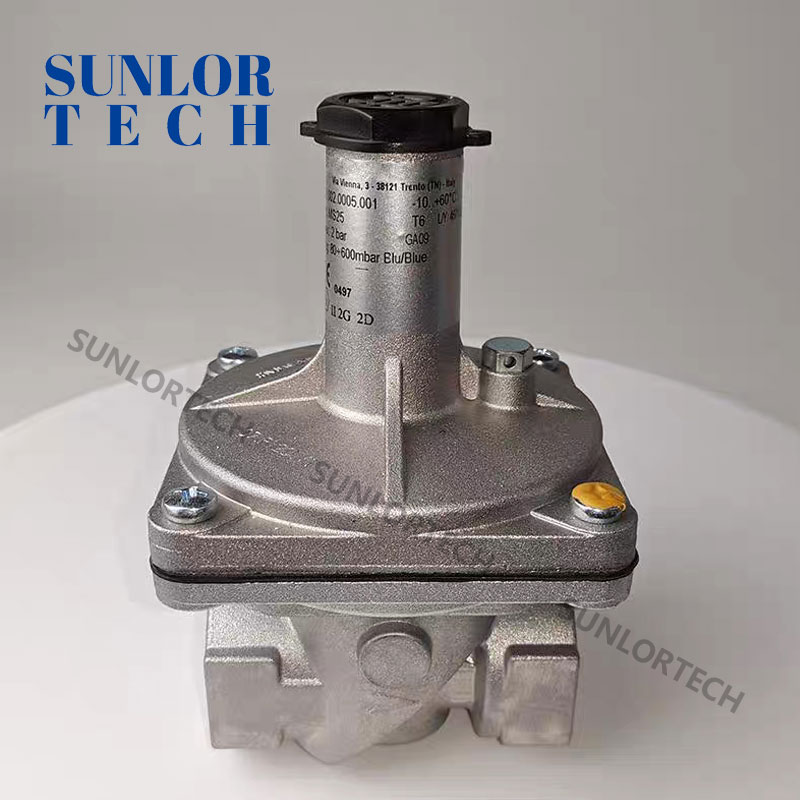

    AMS gas relief valve is a kind of mechanically automatic pressure relief device, when the gas pressure is higher than the set pressure, AMS relief valve can automatically open, to prevent damages of downstream equipment resulted from sudden increase of pipeline pressure due to reducing valve damage or other reasons. Aluminum alloy, thread connection and spring resisting pressure of 1kg can be selected.

    AMS gas relief valve used to release the burner upstream of the instantaneous pressure fluctuations, to avoid misoperation of safety shut-off valve, at the same time to prevent the sudden pressure increase caused by the damage of the pressure reducing valve,protection Pressure valve downstream valve.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

AMS gas relief valve is a kind of mechanically automatic pressure relief device, when the gas pressure is higher than the set pressure, AMS relief valve can automatically open, to prevent damages of downstream equipment resulted from sudden increase of pipeline pressure due to reducing valve damage or other reasons. Aluminum alloy, thread connection and spring resisting pressure of 1kg can be selected.

AMS gas relief valve used to release the burner upstream of the instantaneous pressure fluctuations, to avoid misoperation of safety shut-off valve, at the same time to prevent the sudden pressure increase caused by the damage of the pressure reducing valve,protection Pressure valve downstream valve.

Material

Body:

Die casting aluminum alloy

Seat:

 Die casting aluminum alloy

Stem:

 Copper

Valve plate:

Aluminum alloy

The disc sealing ring:

Nitrile butadiene rubber, fluorine rubber
lris:Nitrile butadiene rubber, fluorine rubber
Technical Parameter

Connection mode:

Rp1"

Maximum inlet pressure:

1 bar

Opening pressure:

30~500 mbar
Temperature:-15°C~+60°C
Through the spring adjustment setting, different is not the same as the adjustable range of the spring.
