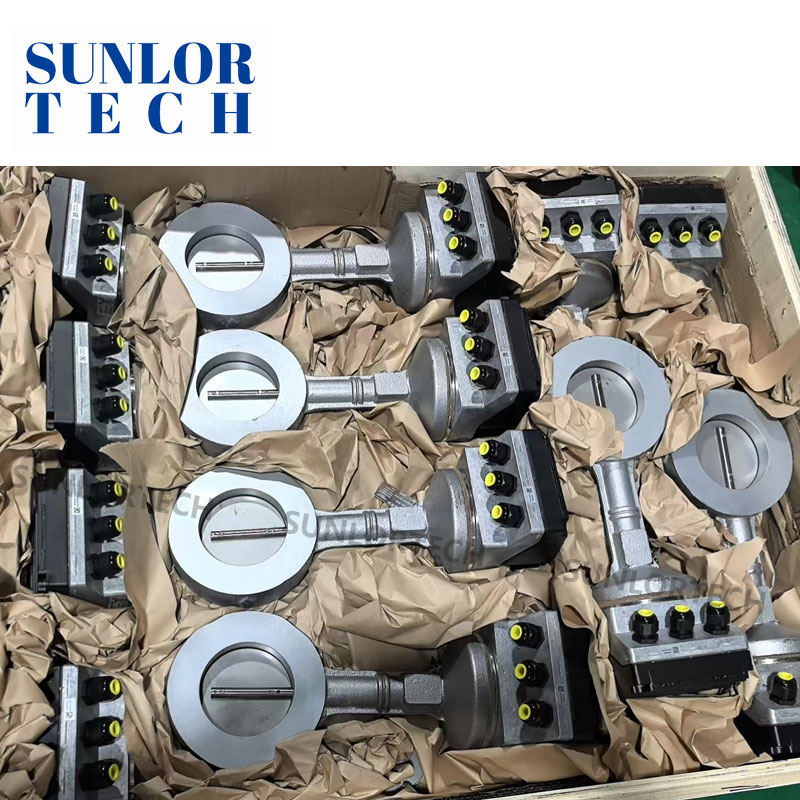

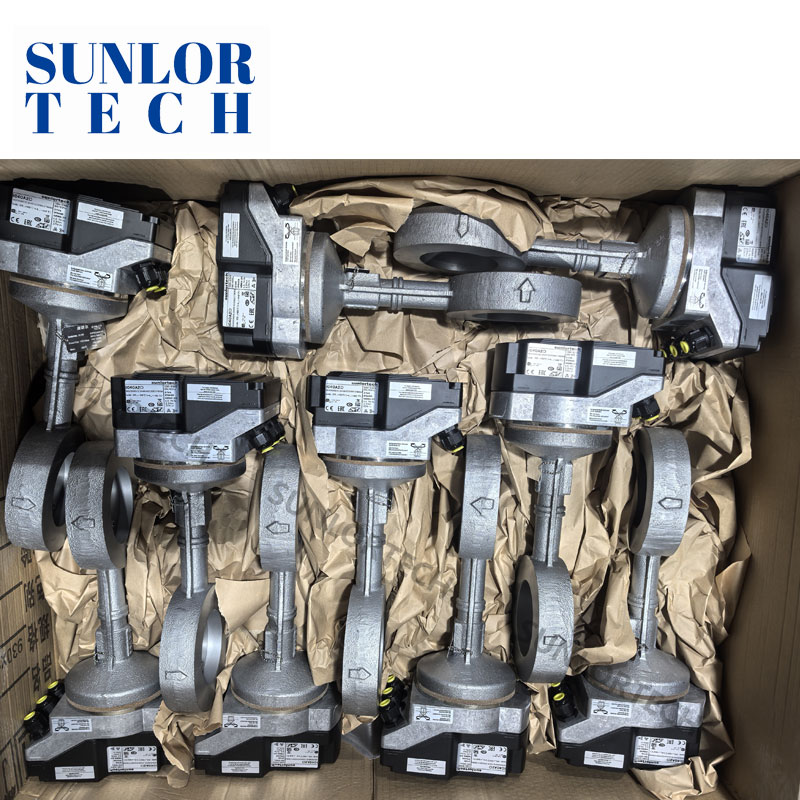

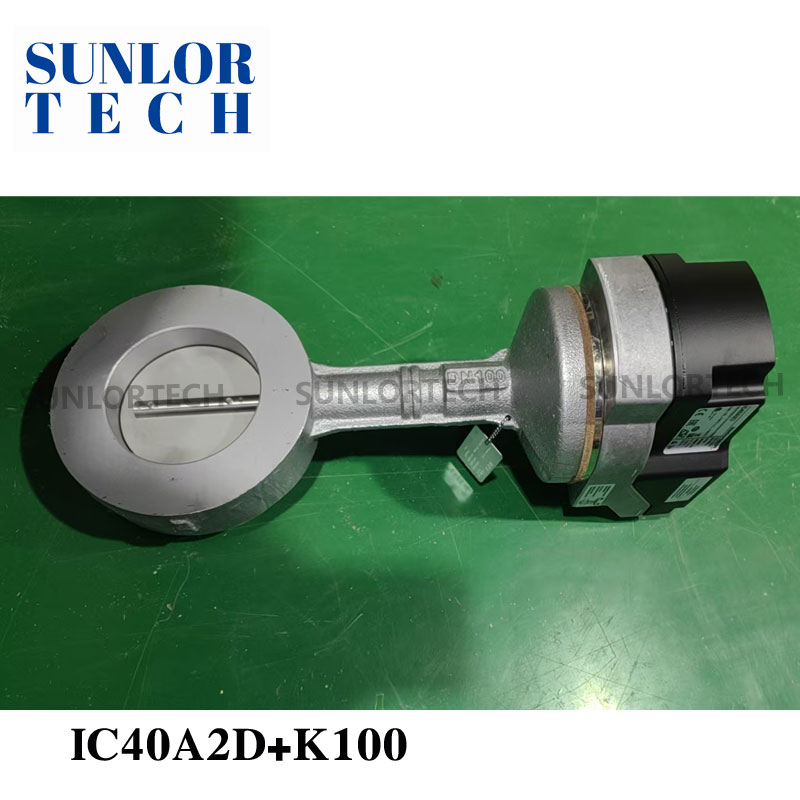

The electric butterfly valve IC40A2D+K100 is a high-performance industrial automation control valve. It uses an electric actuator to rotate the butterfly plate, achieving rapid cutoff or flow regulation of pipeline media. Suitable for water, air, steam, weakly corrosive liquids, and gases, it is widely used in HVAC (Heating, Ventilation, and Air Conditioning), water treatment, chemical, and energy fields.
█ Core parameters
● Valve body and material
-Valve body material: cast iron/ ductile iron/stainless steel (according to model configuration)
-Valve plate material: stainless steel/nickel-plated cast iron
-Sealing material: EPDM (ethylene propylene rubber) / PTFE (polytetrafluoroethylene), heat and corrosion resistant.
● Diameter and pressure
Nominal diameter: DN40 (or other specifications, to be confirmed according to the model code)
Nominal pressure: PN10/PN16 (standard configuration, suitable for medium and low pressure pipelines)
● electric actuator
-Control type: switch (on/off) or adjustment (4-20mA analog control)
-Power supply voltage: AC220V/AC380V or DC24V (model suffix needs to be confirmed)
-Protection level: IP67/IP68 (dustproof and waterproof)
-Torque output: customized according to valve size to ensure reliable opening and closing.
● going
-Temperature range: -20 C to + 150 C (depending on the sealing material)
-Applicable media: water, air, oil, weak acid and alkali solution, etc.
█ Product features
● Efficient control
-Electric actuators respond quickly, support remote automation control, and can be integrated into PLC/DCS systems.
-Regulating valves support precise flow control (with a positioner).
● reliable seal
-Multi-level soft sealing structure, leakage level up to **ANSI Class VI** standard, suitable for harsh working conditions.
● packaged design
-Light structure, small installation space, suitable for pipeline intensive scenarios.
● Long life maintenance
-The valve stem and bearing are designed with self-lubrication to reduce wear and maintain a long maintenance cycle.
● application area
-HVAC (HVAC): hot and cold water circulation system, fan coil control.
-Water treatment: pumping station, water supply and drainage network, sewage treatment.
-Industrial process: medium transportation control in chemical, food and pharmaceutical industries.
-Energy management: thermal pipe network, boiler system.
█ Installation and selection suggestions
● Installation direction
-Can be installed horizontally or vertically, but avoid the actuator facing down to prevent water intake.
● Pay attention to selection
-Confirm that the medium temperature, pressure and corrosiveness are compatible with the valve material.
-Select switch or adjustment type actuators according to control requirements.
-Special conditions (such as explosion-proof, high temperature) need to be customized.
█ matters need attention
-The actual parameters may vary depending on the model suffix, please contact us for accurate information.
-Before installation, the pipe impurities should be cleaned to avoid damage to the sealing surface.
