  • AF gas filter

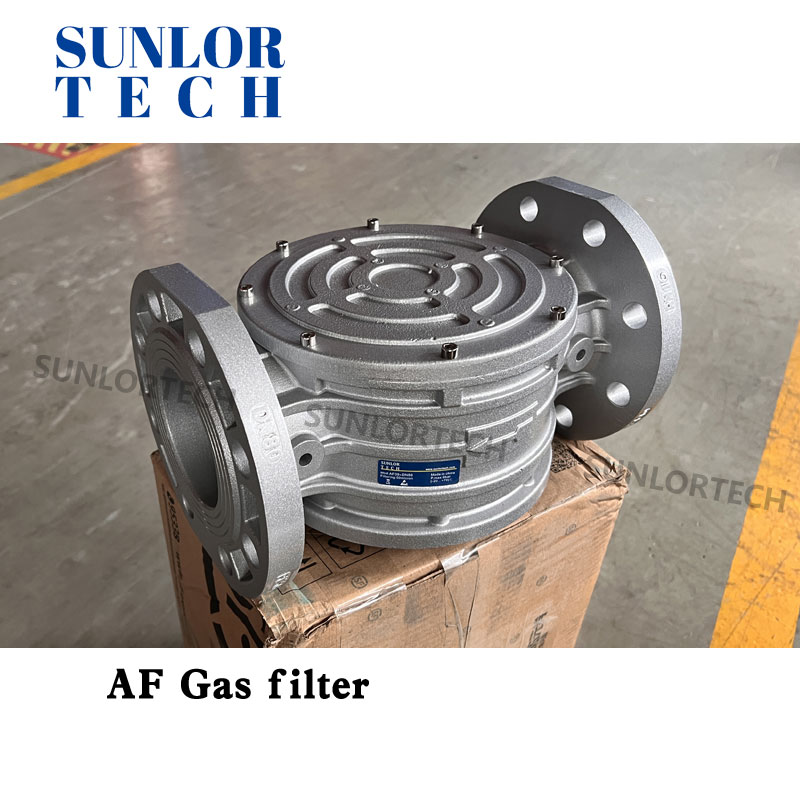

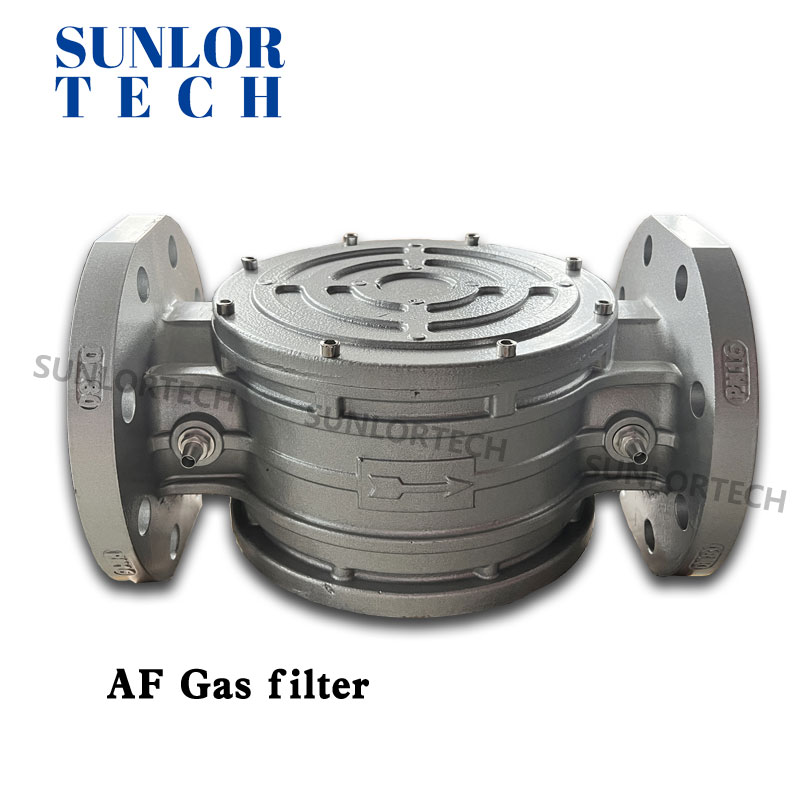

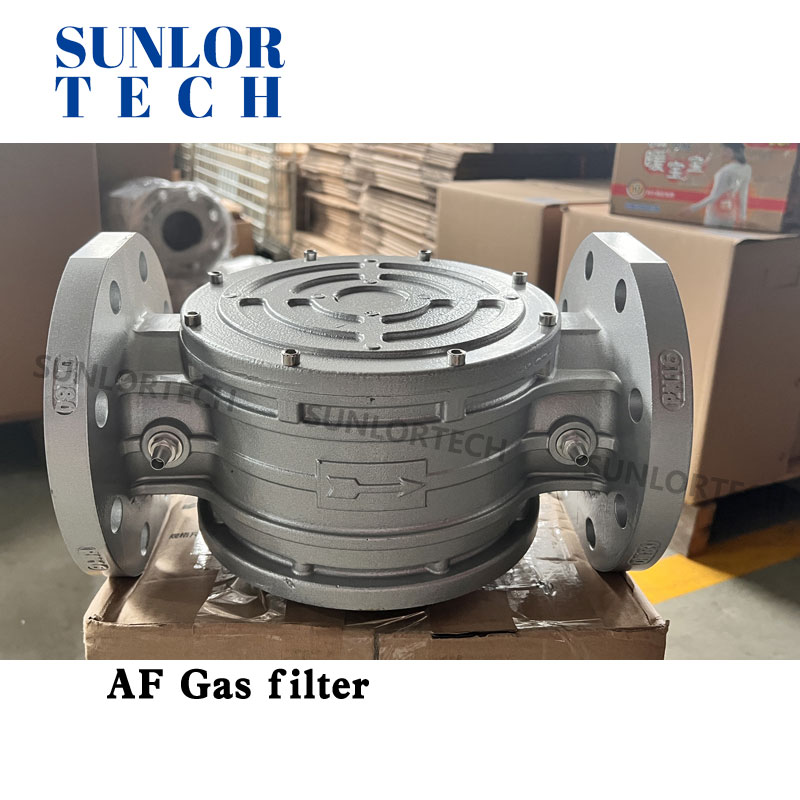

    AF gas filter
    AF gas filter
    AF gas filter
    ❤ Add to collection

  • AF gas filter

    The AF gas filter is primarily used to remove impurities from the gas, enhancing its efficiency and ensuring more complete combustion. It also helps reduce gas consumption while protecting the normal operation of downstream gas pipeline equipment. The housing is made of aluminum alloy, and the filter core is composed of synthetic fibers. The flanged connection type filter core is reinforced with steel mesh. There is a pressure test point at the inlet of the flanged connection type filter. The filter can be installed vertically or horizontally, making it easy to remove the valve cover for cleaning. The filter core should be replaced annually, or as soon as the pressure difference before and after the filter exceeds 10 mbar.

    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

The AF gas filter is primarily used to remove impurities from the gas, enhancing its efficiency and ensuring more complete combustion. It also helps reduce gas consumption while protecting the normal operation of downstream gas pipeline equipment. The housing is made of aluminum alloy, and the filter core is composed of synthetic fibers. The flanged connection type filter core is reinforced with steel mesh. There is a pressure test point at the inlet of the flanged connection type filter. The filter can be installed vertically or horizontally, making it easy to remove the valve cover for cleaning. The filter core should be replaced annually, or as soon as the pressure difference before and after the filter exceeds 10 mbar.

Product Parameter

Shell:

Aluminum alloy

Filter element:

Synthetic fiber, flange connected filter element is reinforced with steel wire mesh

Standard:

In line with the EU BS En126 standard

Maximum inlet pressure:

4Bar

Filtration precision:

Less than 50µm

Medium:City gas, natural gas, propane, non-corrosive gas, etc.
