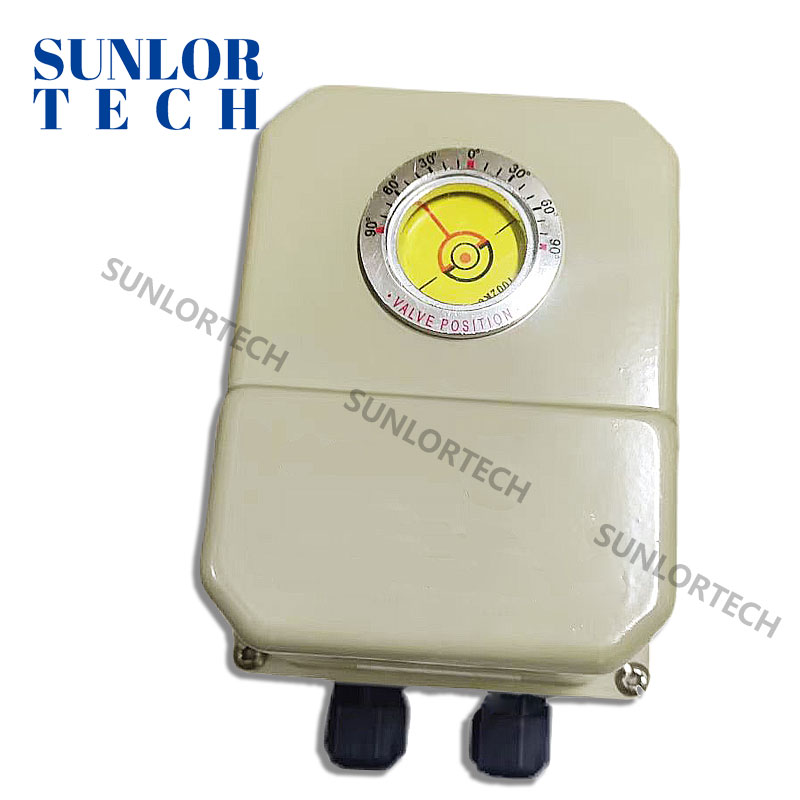

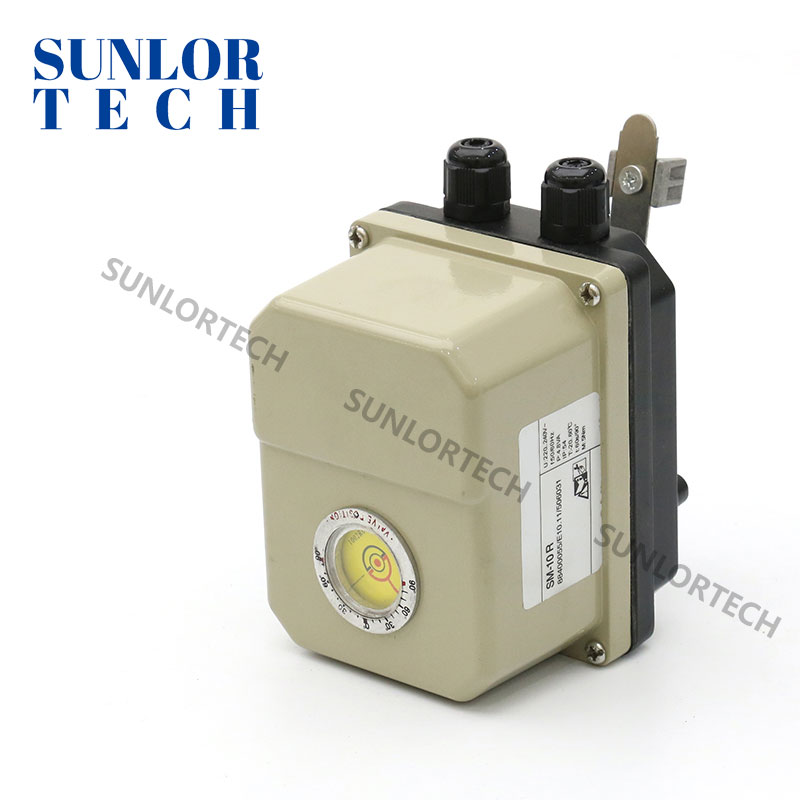

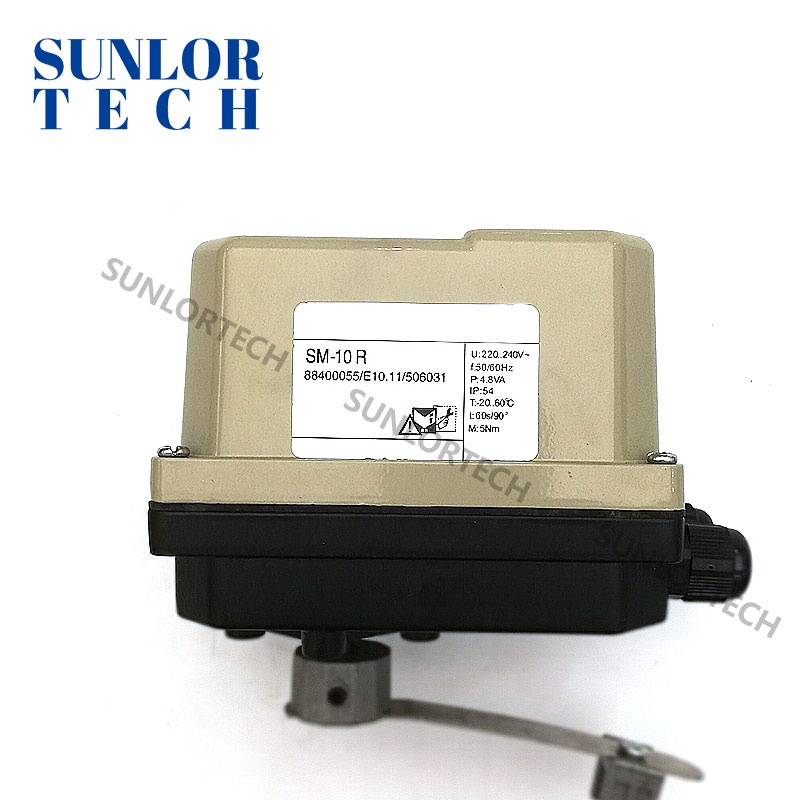

SM-10R electric actuator is an angular stroke electric actuator with valve position feedback potentiometer. It is mainly used to drive butterfly valve, ball valve and other rotary valves, and is widely used in the temperature control system of industrial fuel oil and gas kilns.

mechanical behavior

Mechanical action Angle: 0 ~90.

Mechanical action time: 30 seconds or 60 seconds adjustable (from 0 to 90 or 90 to 0).

Number of mechanical movements:>500,000 times without failure.

Life:> 1 million times.

electrical character

Valve position feedback signal: 1KΩ potentiometer.

Cam contact load: 60~250V, maximum 2A.

Electrical connection: 1.5mm² cable.

Insulation resistance: 50MΩ (DC500V).

Insulation strength: AC1500V/1 minute.

application scenarios

Accompanying valve: used with aluminum butterfly valve, the butterfly valve diameter range includes ∮25, ∮32, ∮40, ∮50, ∮65, ∮80, ∮100mm.

Applicable gas types: liquefied gas, natural gas, gas. If used for coal mine gas and other corrosive gases, it is recommended to use stainless steel butterfly plate.

Typical application: industrial kiln temperature control, such as building materials, chemical industry fuel oil, gas system.

product superiority

Compact structure: using die-cast aluminum alloy housing, small and efficient permanent magnet synchronous motor.

Control accuracy: small inertial walk, high valve position accuracy, suitable for proportional regulation.

Durable: high mechanical life, suitable for harsh industrial environment.
