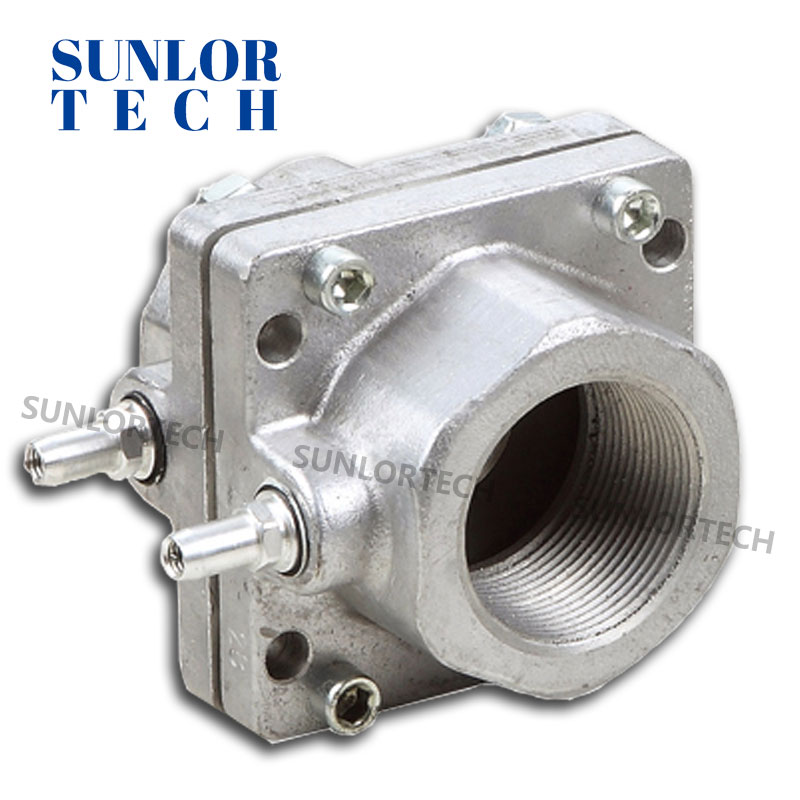

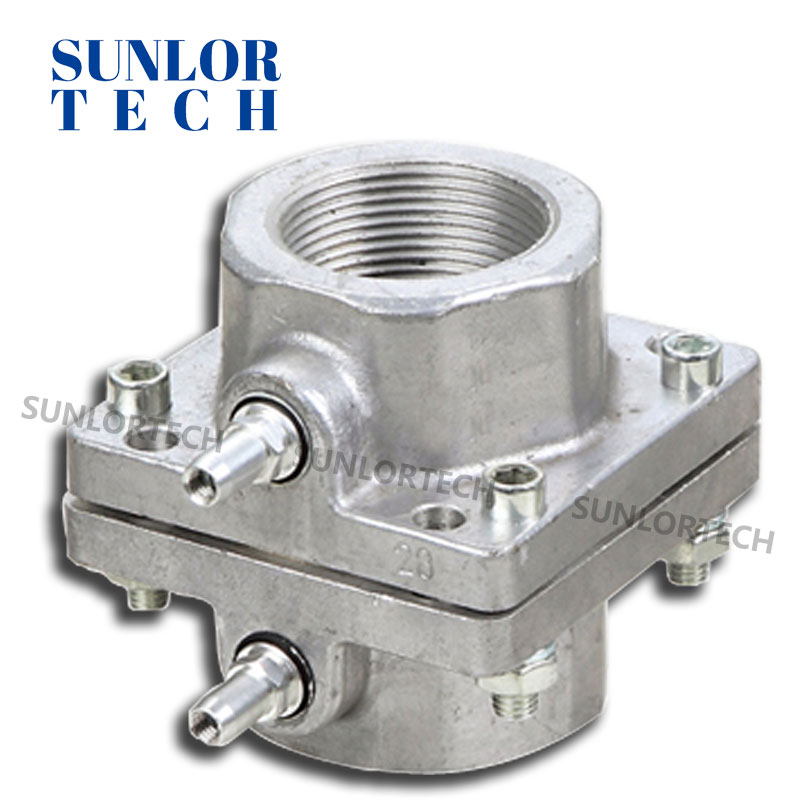

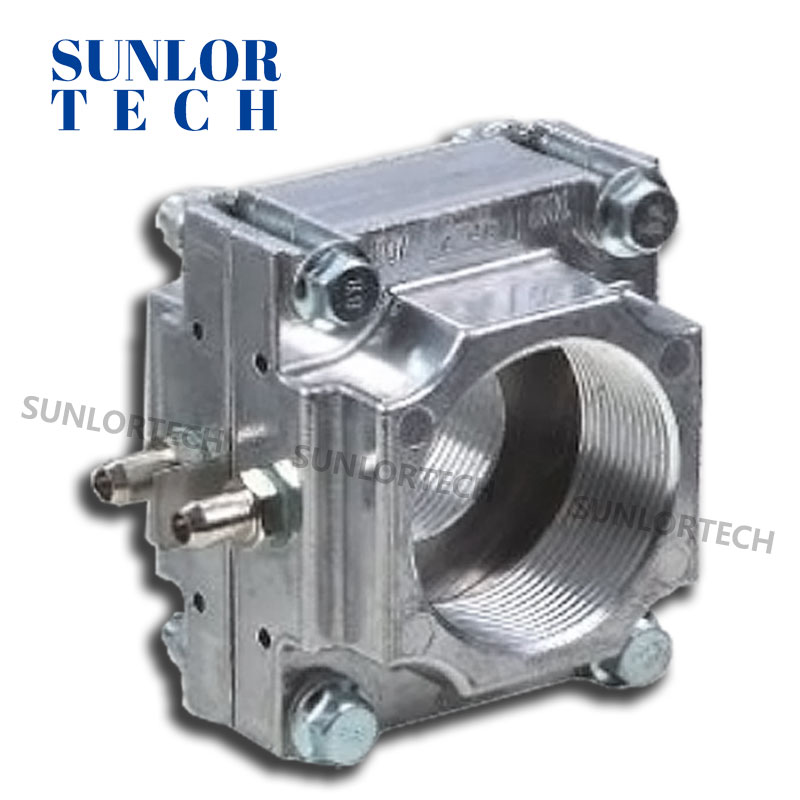

The AKB series orifice plate has pressure measuring holes at both ends. By measuring the pressure difference, the actual flow rate can be quickly known. The orifice plate is connected by thread.

Function of orifice plate:

Flow regulation: The orifice plate controls the flow of gas or air through its opening size to ensure that the burner operates under optimal conditions.

Pressure control: The pressure difference before and after the orifice plate can be used to measure the flow rate and adjust the gas supply or air supply pressure of the combustion system.

Mixed optimization: In the burner work, the orifice plate helps to pre-mix gas and air to improve combustion efficiency.

Characteristics of orifice plate:

Standardized design: Follow international standards to ensure the accuracy of measurement and adjustment.

High temperature resistance and corrosion resistance: burner orifice plate is made of high temperature resistant material to adapt to the combustion environment.

Adjustability: Some orifice plate designs support the replacement of plates with different hole sizes to accommodate different gas types or combustion requirements.

Place of use: high speed burner to ensure the precise ratio of gas and air; flat flame burner to optimize the shape of the flame; temperature adjustment burner to adjust the combustion temperature through secondary wind.
