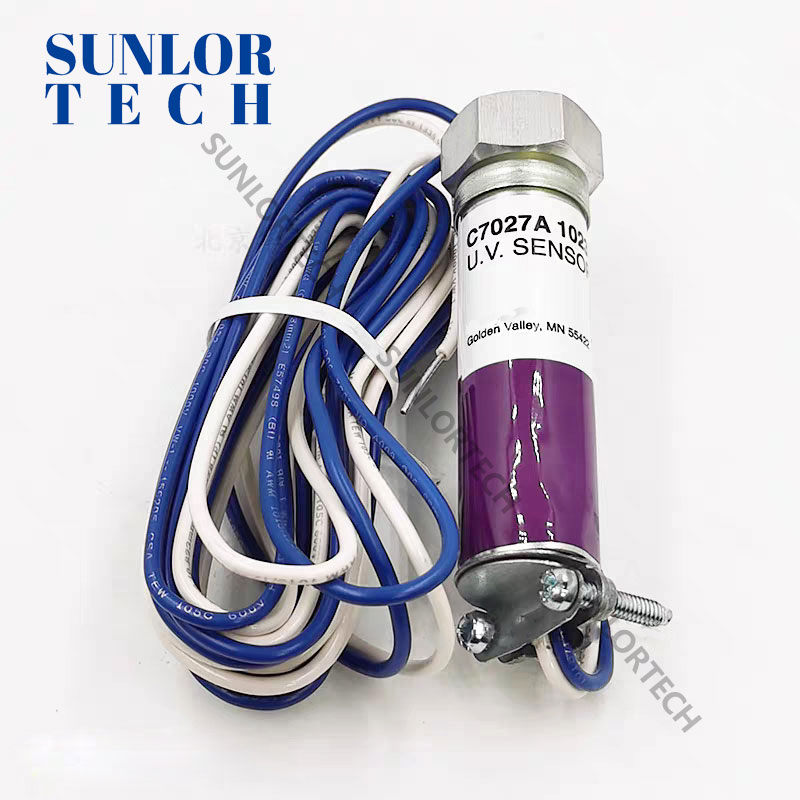

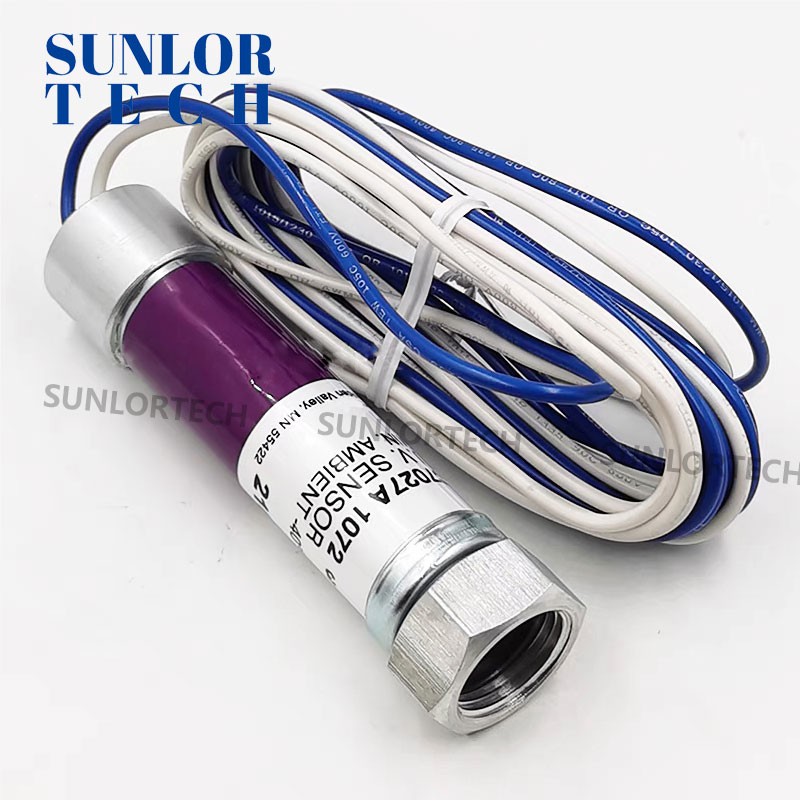

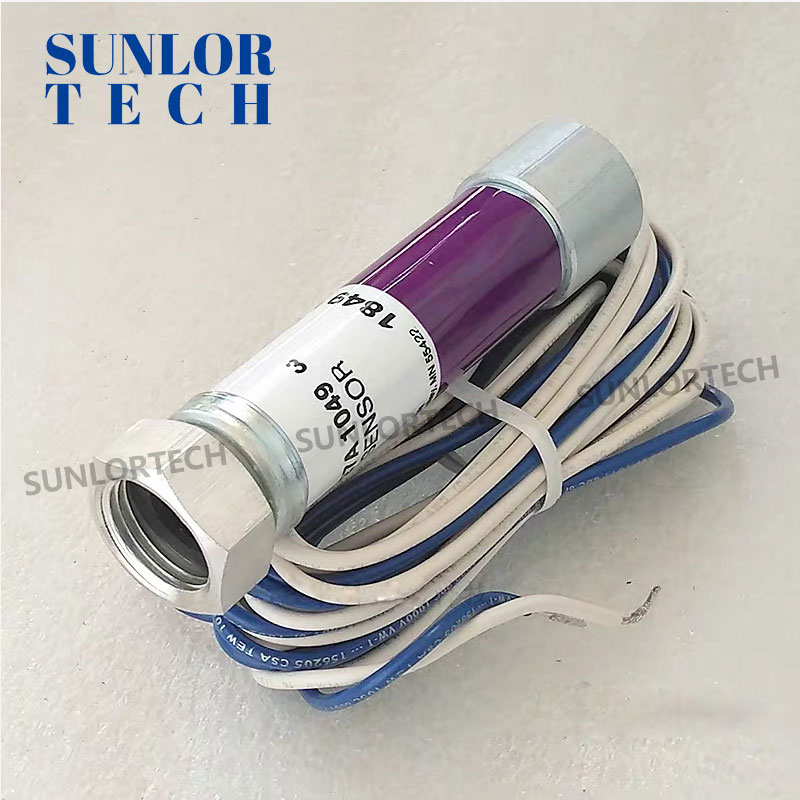

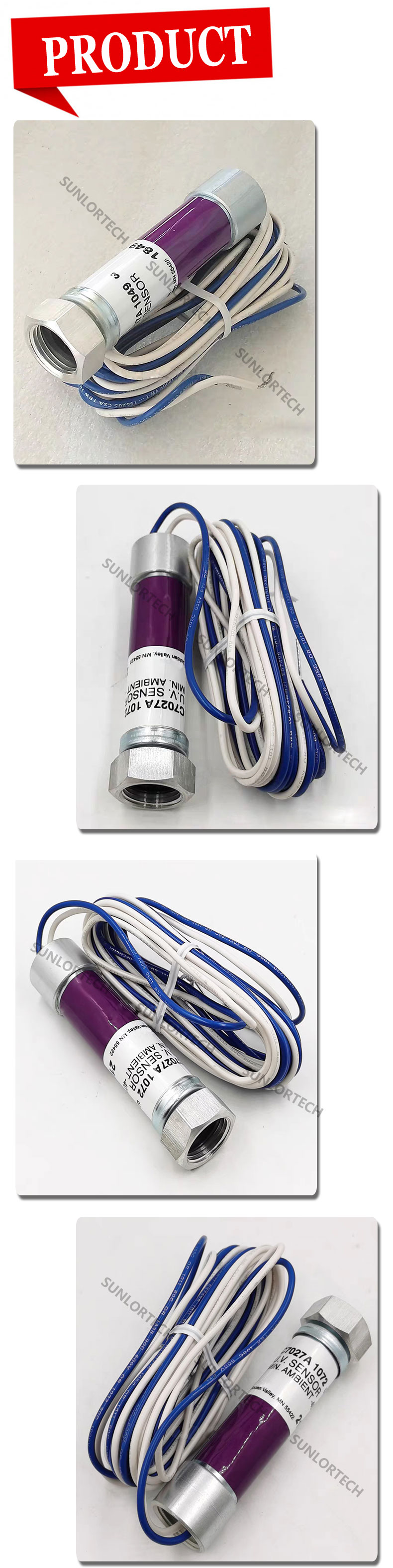

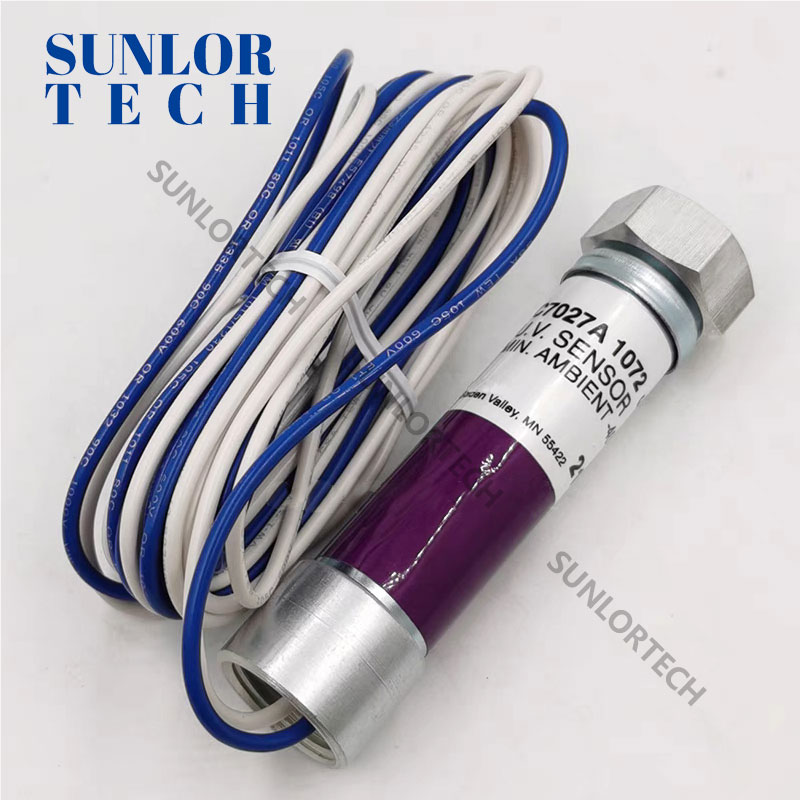

Industrial burner flame ultraviolet monitor is a safety device for detecting the existence of flame, which is widely used in industrial boilers, gas burner, heating furnace and other equipment. It confirms the combustion status by detecting the ultraviolet radiation emitted by the flame, ensuring the safe operation of the burner, and preventing the danger caused by the leakage of the unfired gas body.

major function

Flame detection: Real-time monitoring of the burner flame, to ensure normal combustion.

Safety protection: When the flame is accidentally extinguished, automatically cut off the gas supply, to prevent the explosion or poisoning accidents.

System linkage: Cooperate with the combustion controller (such as combustion management module) to realize automatic ignition, flameout protection and other functions.

operational principle

When natural gas is burned, the flame emits ultraviolet light in specific bands (mainly in the UV-C band of 185 to 260 nm). The UV monitor works through the following steps:

1. UV detection: Built-in UV phototube or UV sensor to detect the flame radiation of ultraviolet.

2. Signal conversion: Convert the UV optical signal into an electrical signal and enlarge it.

3. Logical judgment: If the signal strength reaches the set threshold, determine the flame presence; otherwise, trigger the safety protection.

characteristic:

High sensitivity: Optimized for natural gas flame, quick response (usually <3 seconds).

Anti-interference strength: the filter shields other light sources (such as sunlight, infrared radiation).

Safe and reliable: In line with the industrial safety standards.

Strong applicability: Suitable for natural gas, liquefied gas (LPG), biogas and other clean gas.
