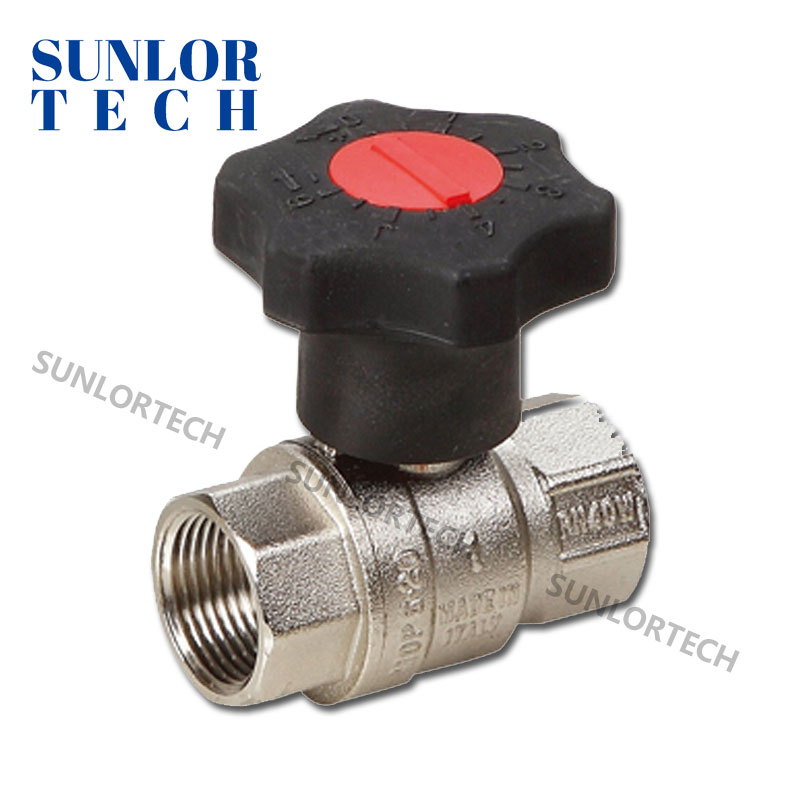

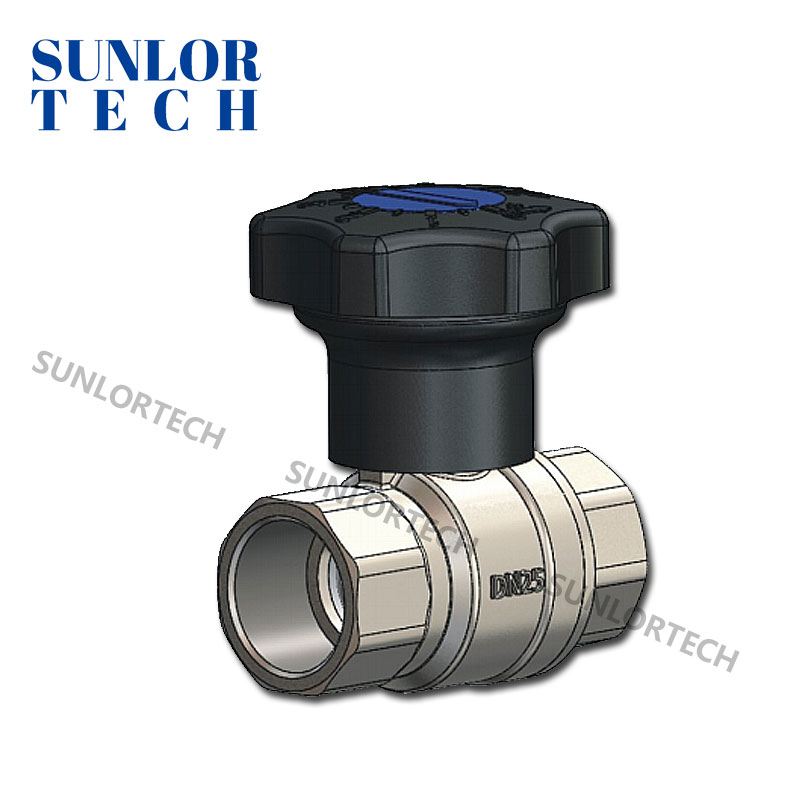

AGH stopcock

AGH stopcock valve that manually rotates the opening or closing of the hand wheel to make the passage plug on the valve plug and the passage plug on the valve body communicate or separate.
Working principle: When the AGH stopcock, the through hole is aligned (on) or vertically (off) to control the fuel. Some valves are designed to support flow regulation (through a partial rotating stopcock).
Characteristic：
1、Both used in gas or air, medium temperature compatibility
2、With scale hand wheel adjustment for linear adjustment of medium flow
3、The maximum gas pressure is 1bar, and the maximum air pressure is 1bar
Application scenarios
Industrial combustion system: gas boiler, fuel oil heater, incinerator, etc.
Chemical industry and energy: fuel control in oil and natural gas pipelines.
Laboratory equipment: Gas regulation of the precision burner.
- Price：￥0.00

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to cart

  Buy now

Description

AGH stopcock valve that manually rotates the opening or closing of the hand wheel to make the passage plug on the valve plug and the passage plug on the valve body communicate or separate.

Working principle: When the AGH stopcock, the through hole is aligned (on) or vertically (off) to control the fuel. Some valves are designed to support flow regulation (through a partial rotating stopcock).

Characteristic：

1、Both used in gas or air, medium temperature compatibility

2、With scale hand wheel adjustment for linear adjustment of medium flow

3、The maximum gas pressure is 1bar, and the maximum air pressure is 1bar

Application scenarios

Industrial combustion system: gas boiler, fuel oil heater, incinerator, etc.

Chemical industry and energy: fuel control in oil and natural gas pipelines.

Laboratory equipment: Gas regulation of the precision burner.

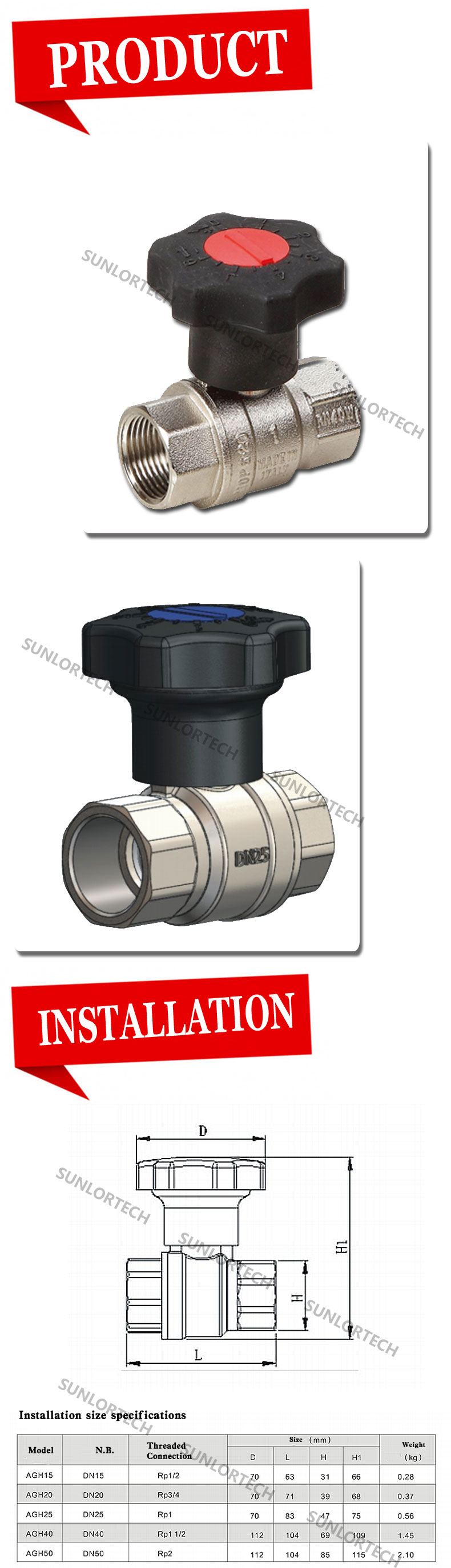

Product Parameter
Used temperature:	-10℃ ~150℃
Control mode:	Manual operation
Used gas:	Natural gas, fuel oil, liquefied gas, etc
Connection mode:	Flange, screw thread
Seal performance:	Prevent fuel leakage, high safety
Seal performance:	Prevent fuel leakage, high safety
